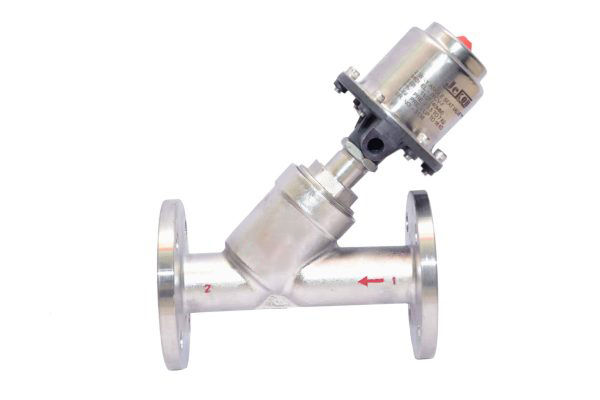

Pneumatic Angle Seat Valve Flanged End
Technical Specification
Model Valve Size Orifice MM Inlet Position Max. Op. Press
Low to Close Bar
Max. Op. PressLow to Open Bar
Flow Factor M3/hr
Air
Consumption
Lit/Cycle
JYCV-15
1/2″
16 N/C 16 16 4.2 0.155 JYCV-15 1/2″ 16 N/O 16 16 4.2 0.155 JYCV-20 3/4″ 16 N/C 16 16 5.5 0.155 JYCV-20 3/4″ 16 N/O 16 16 5.5 0.155 JYCV-25 1″ 23 N/C 16 16 13.5 0.161 JYCV-25 1″ 23 N/O 16 16 13.5 0.161 JYCV-40 1.1/2″ 34 N/C 15 15 31.9 0.172 JYCV-40 1.1/2″ 34 N/O 10 10 31.9 0.172 JYCV-50 2″ 45 N/C 14 16 54.5 0.184 JYCV-50 2″ 45 N/O 16 12 54.5 0.184 JYCV-65 2.1/2″ 62 N/C 14
16
54.5
0.184JYCV-65 2.1/2″ 62 N/O 16 12 54.5 0.184 JYCV-80 3″ 75 N/C 10 10 105 0.735 JYCV-80 3″ 75 N/O 10 10 105 0.73
